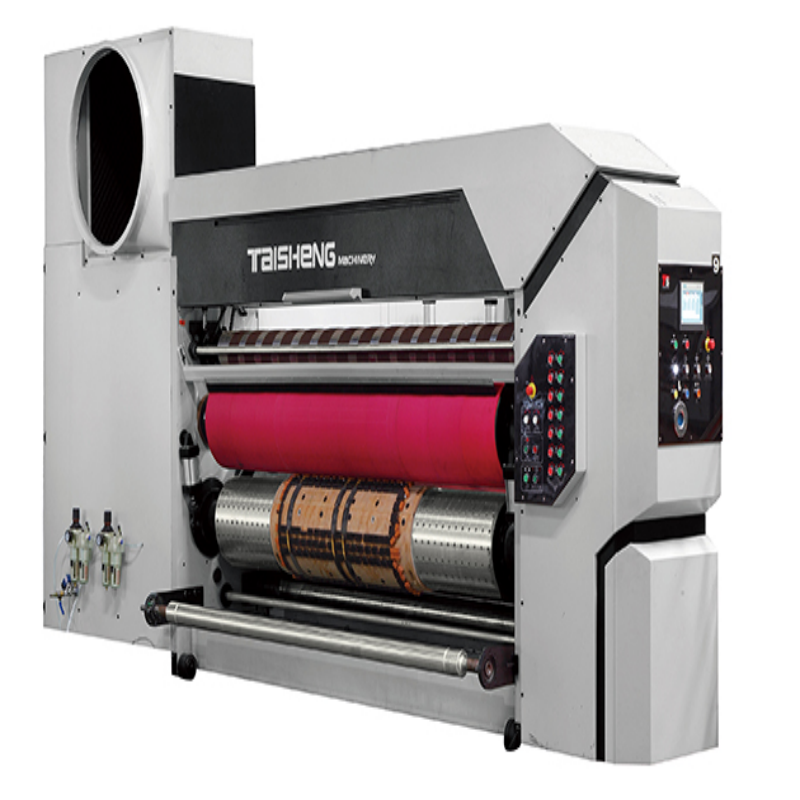

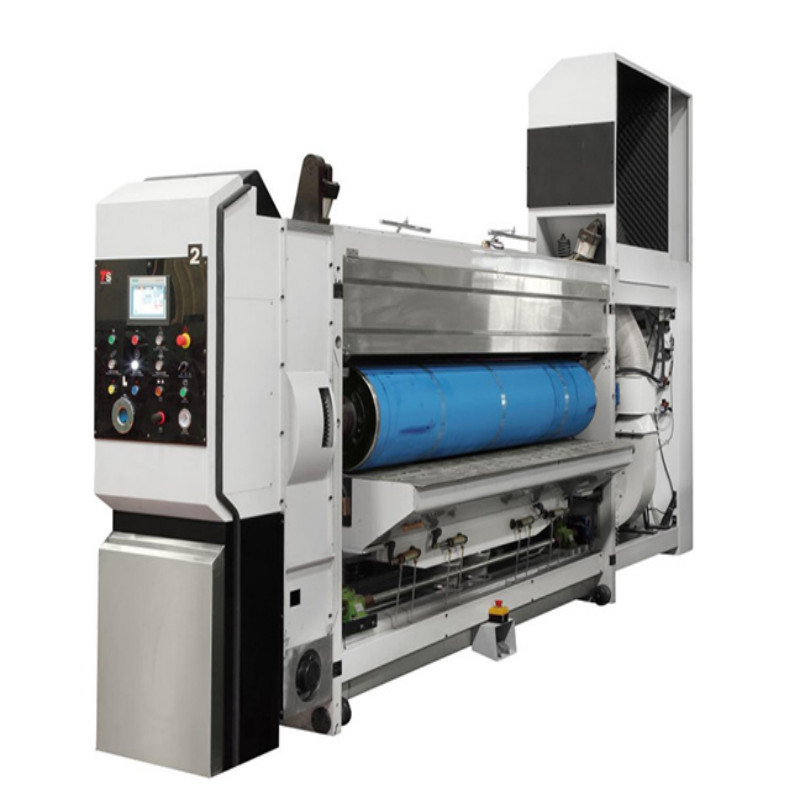

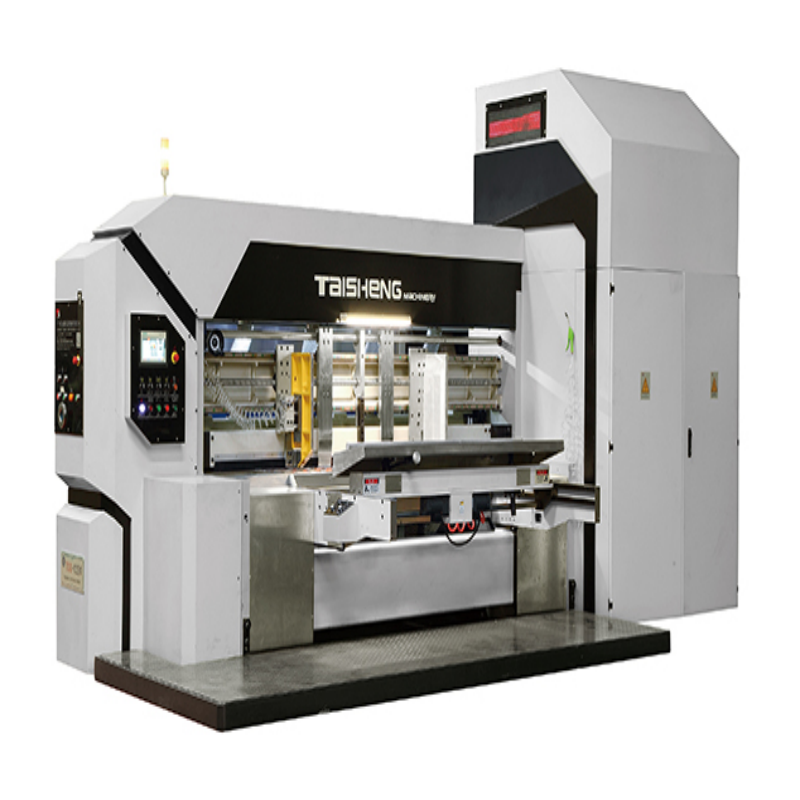

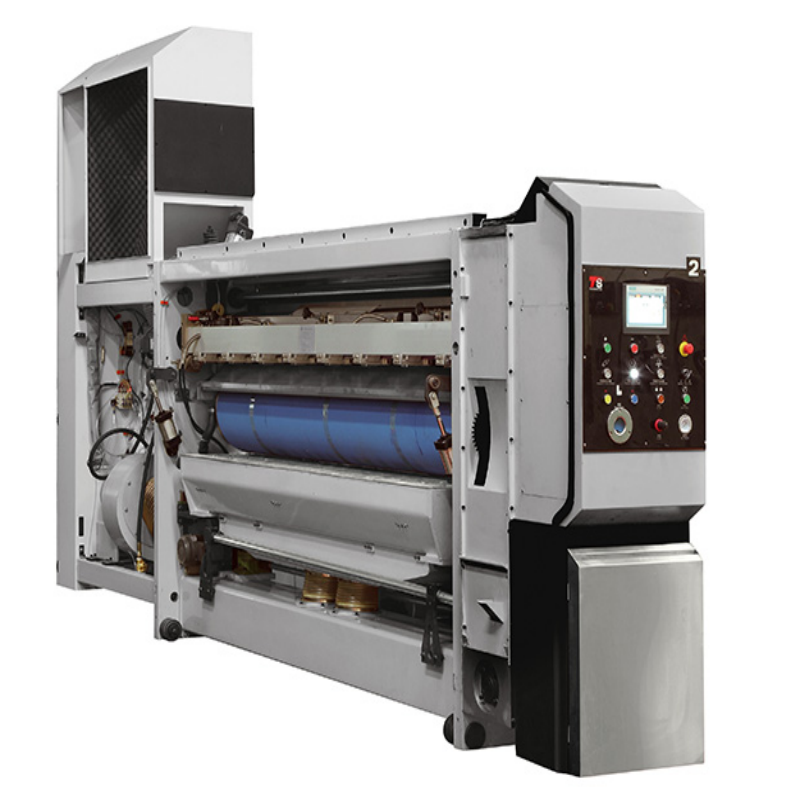

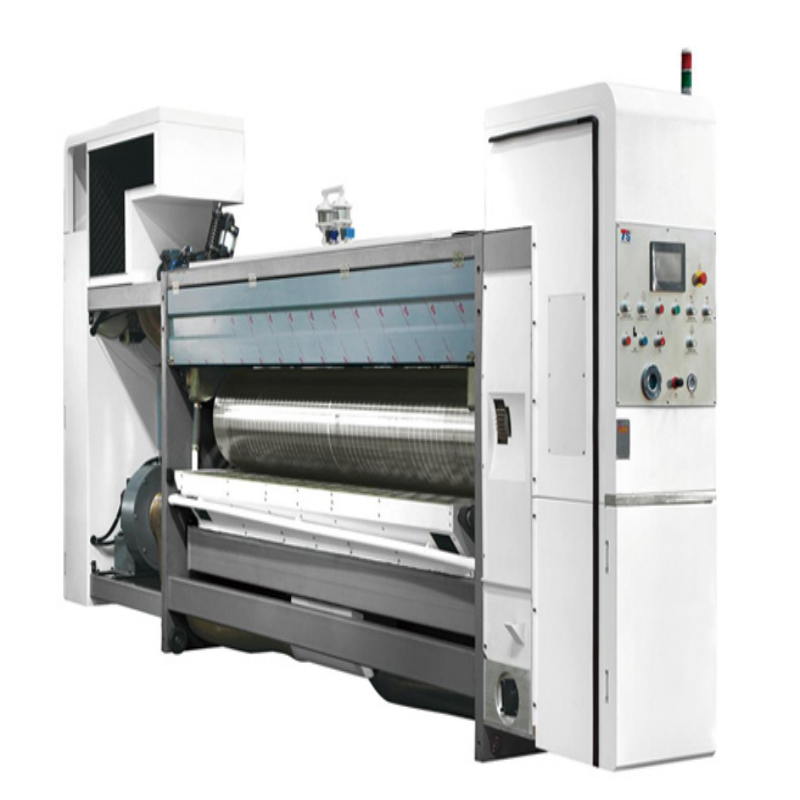

TSG-3 Automatic Whole Vacuum Transfer High Speed Printer Slotter Die Cutter Machine
TSG-3 classification corrugated carton making machines can manufacture corrugated cartons through the use of 1-8 color printing, slotting, diecutting, and other multi-channel programs. The host carriable frequency control, lead edge suction feeding system, and adjustable air volume Electric PLC computer is used for phase adjustment, pneumatic unit locking, electrical control of machine separation and combination, and fine grinded gear. Lubrication is accomplished through the use of a closed spray lubrication system. Keyless connection is used by Gears.
SPECIFCATIONS
| Model | TSG-3-920 | TSG-3-1224 | TSG-3-1628 |
|---|---|---|---|
| Max. Machine Speed (pcs/minute) | 300 | 280 | 180 |
| Max. Feeding Size (mm) | 900×2000 | 1200×2400 | 1600×2800 |
| Jump Feed Max. Cardboard Size(mm) | 1200×2000 | 1500×2400 | 1900×2800 |
| Min. Cardboard Size(mm) | 300×600 | 365×600 | 450×600 |
| Max. Printing Size | 900×1960 | 1200×2360 | 1600×2760 |
| Min Slotter Blade Space (Male) (mm) | 150×150×150×150 | 150×150×150×150 | 150×150×150×150 |
| Min Slotter Blade Space (Female) (mm) | 240×65×240×65 | 260×65×260×65 | 260×100×260×100 |
| Max Slotting Deep(mm) | 250 | 300 | 400 |
Performance Characteristics of The Whole Machine
The machine transmission adopts whole vacuum adsorption printing, more precise and clearer.
Make zero automatic,reset automatic.
Automatic oil balance installation,to keep the oil of each unit in same lever.
Independent computer control,can save frequently-used orders,the quantity can be1000pcs maximum.Fastly order change,convenient operation.
Feeder Unit
Can be continuous feeding and space feeding.
Inverter control the vacuum air and pressure,to follow the cardboard size.
Can adjust the feeding preceding to reduce the pressure of feeder roller.
Computer control the space of feeder roller and the position of both sides guard.
Backside starker computer control front and backside,increase the speed of set up.
Electrostatic dust removing device,Multi brush and fan cleaning the wastepaper in surface of the cardboard.To increase the printing quality.
The adjustment of pressure of feeder rollers adopts computer control,between 0-12mm.
The power transmission system adopts cam bearing transmission,in order to reduce the abrasion and make the transmission more steady.
Protector of main motor start(The main motor can not start when the machine didn't lock well).
Feeder Unit and Printer Unit adopt encoder making zero.Ordinary carton producing can use making zero automatic device.The correct position can be adjusted by test printing of 2 cardboard.In order to not waste cardboard.
Vacuum Transfer Printing Unit
The printing rollers are rollers are made by high quality steel, hard chrome plating,surface grinding.
Pedal switch control the printing roller turning forward or back off when install the printing sheet.
Adopts vacuum transfer(The surface of the transfer wheel is made by ceramic,in order to increase the rub and using life).Can transfer the cardboard without transfer roller.
The adjustment of the Printing pressure rollers space adopts commuter control,between 0-12mm.
Immobilization device of the printing phase.Electromagnetic clutch brake type brake mechanism.The Brake mechanism to limit gear rotation,Maintain the fixed position of the original gear when the units separate or adjust the phase and cleaning.
Horizontal phase using computer control,±10mm.
Automatic reset system after cleaning plate.
Pneumatic single diaphragm pump,Ink supply stability,Desperation maintenance is simple.
Ink tank is placed under the Single blade ink supply system.
Automatic switch cleaning device, so that ink recycling more thoroughly.
Servo motor is adopted for phase adjustment
Adopt ceramic anilox
Die cutter Unit
The die roller is made of high quality steel, hard chrome plating,surface grinding.
Balance correction,Increase running stability .
The anvil roller is made of high quality steel, hard chrome plating,surface grinding.
Balance correction,Increase running stability .
Computer and digit control system are adopted for the space of pushing roller.
Planetary gear structure.
Computer and digit control system are adopted for the die cutting phase,can adjust circle.
Transverse phase using computer and electric digital control, control range ±10mm
Anvil roller compensation adopts servo motor,to control the speed of the anvil roller.Compensation range ±3mm.

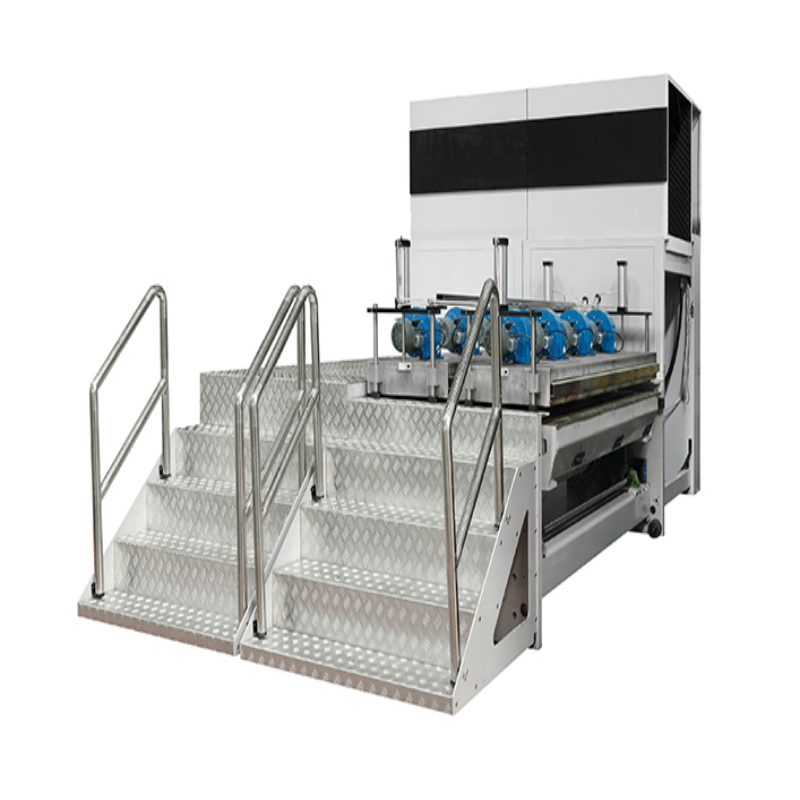

Dryer Unit
Vacuum adsorption roller transfer, roller rows of staggered arrangement, to strengthen
the stability of the board transfer .
The air door can be adjusted automatically according to the cardboard different size.
Can make selection of hot air / infrared /IR/ UV three kinds of drying system based on the configuration.
The drying system adopts PLC program automatic control.
Automatic control of temperature control, fault alarm protection, automatic alarm and
fault status display.
Drying system adopts host dual protection control start and close.Completely solve the combustion and damage problem of the printing products,because of UV/IR lamp direct irradiation too long time when the machine stop working
The Feature of TSG-3 Whole Vacuum Transfer Automatic High
1.The machine transmission adopts whole vacuum adsorption printing, more precise and clearer.
2.Make zero automatically, and reset automatically.
3.Automatic oil balance installation, to keep the oil of each unit in the same lever.
4.Independent computer control can save frequently-used orders,the quantity can be 1000pcs maximum. Fastly order change, convenient operation.
